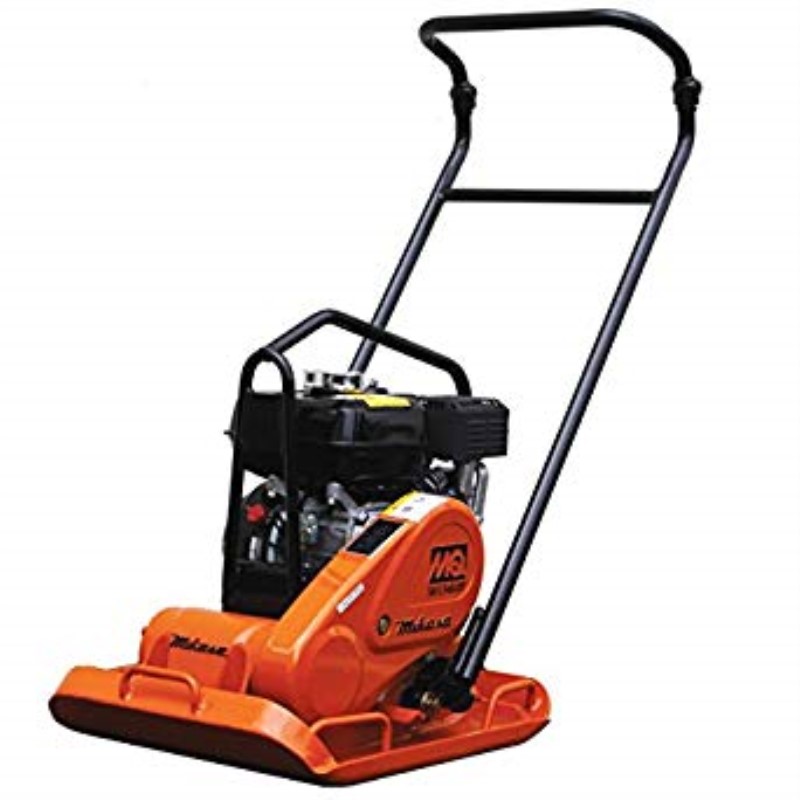

Multiquip MVC82VH, 3080 lb. cf, Honda GX 160, 17.7 in. Plate
Recognized as the industry standard for compacting granular soils and asphalt.
-Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
-Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
-Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
-Solid, high-strength steel base plate for durability.
-Tubular steel roll bar protects engine components and provides central lifting point.
-Sealed belt cover keeps dirt and rocks out extending belt life.
-Open base plate design makes for easier removal of dirt and rock build-up.
-Cog-tooth belt drive enables longer life compared to conventional V-belts.
-Front-mounted exciter assembly allows for easy service access.
-Optional, tool-free removable water tank to facilitate refilling of 11.5-quart reservoir.
Centrifugal Force - 3080 lbf 13.7 kN
Exciter Speed - 5600 VPM
Plate Size - 17.7 x 22.4 in, 450 x 570 mm
Max Forward Speed Per Min. 72 ft 22 m
Fuel Consumption Per Hour 0.31 gal 1.17 L
Dimensions & Weights
Overall Length - 36 in 914 mm
Overall Width - 17.7 in 450 mm
Overall Height - 39.5 in 1003 mm
Shipping Dimensions - 33.5 x 18.5 x 27 in; 851 x 470 x 686 mm
Operating Weight - 175 lb 79 kg
Shipping Weight - 200 lb 91 kg
