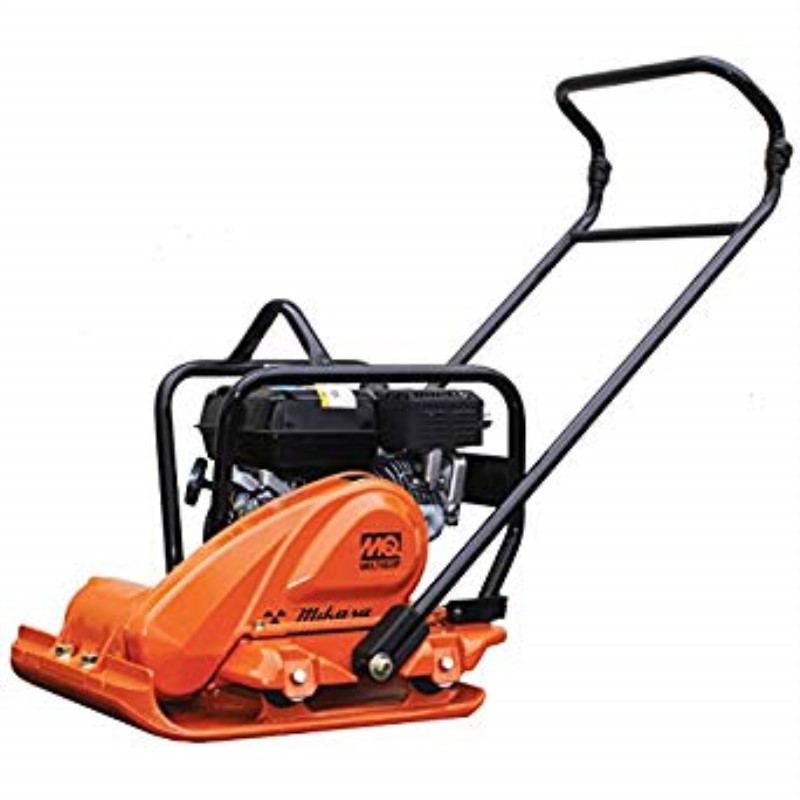

Multiquip MVC88VTH, 3,372 cf, Honda GX160, 19.7 in. Plate
Our best selling plate just got better! The new MVC88 now features a single cast baseplate and eccentric housing to enhance plate durability, serviceability and performance. An hour/tachometer to help measure runtime and engine rpm is now a standard feature. The plate is even easier to transport with the new wheel kit design. All this combined with an advanced anti-vibration handle make the MVC88 the newest and most technically advanced plate compactors on the market.
-Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
-Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
-Single cast baseplate and eccentric housing lowers center of gravity and increases travel speed by 12% for greater productivity.
-Hour/tachometer measures runtime and engine rpm.
-Tubular steel roll bar protects engine components and provides central lifting point.
-Sealed belt cover keeps dirt and rocks out extending belt life.
-Open base plate design makes for easier removal of dirt and rock build-up.
-Cog-tooth belt drive enables longer life compared to conventional V-belts.
-Optional urethane plate attachment for use on paving stones and brick pavers (UPA88T).
-Optional transport wheel kit WHL88T for serial number T2A9197 and below.
-WHL88TC for serial number T2A9198 and above.
Centrifugal Force - 3372 lbf 15 kN
Exciter Speed - 6000 VPM
Plate Size - 19.7 x 20.7 in; 500 x 525 mm
Max Forward Speed Per Min. - 82 ft 25 m
Fuel Consumption Per Hour - 0.31 gal 1.17 L
Dimensions & Weights
Overall Length - 41.75 in 1060 mm
Overall Width - 19.75 in 502 mm
Overall Height - 37 in 940 mm
Shipping Dimensions - 38 x 22 x 29 in; 965 x 559 x 737 mm
Operating Weight - 207 lb 94 kg
Shipping Weight - 225 lb 102 kg
