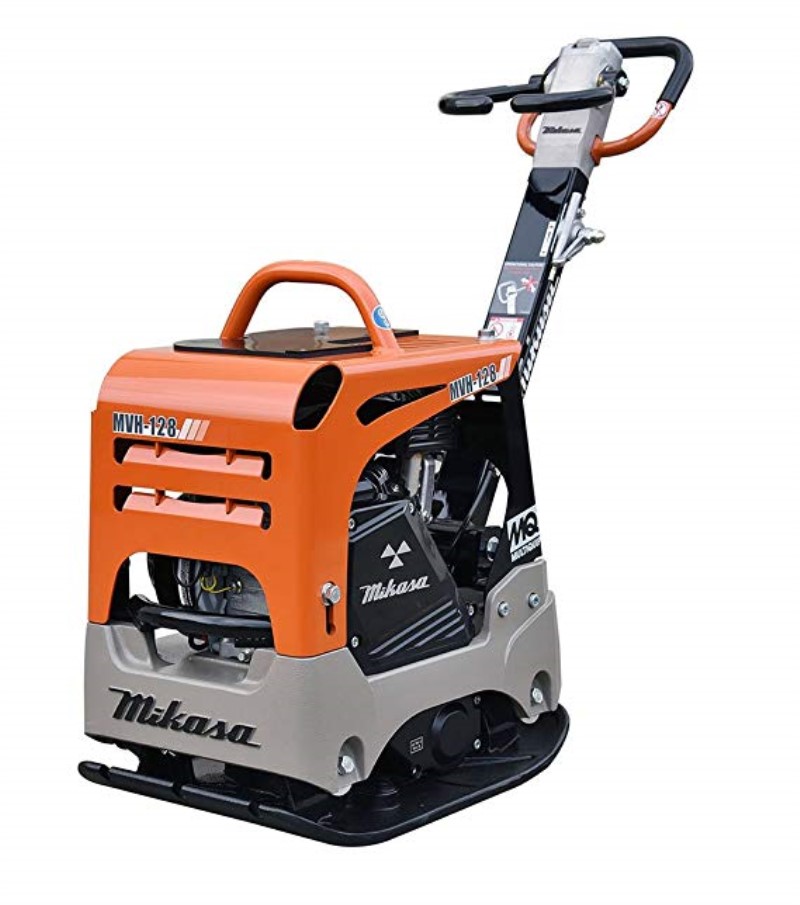

Multiquip MVH128GH, 5,283 lbs cf, Honda GX160, 15.8in. Plate
Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
-Reliable Honda GX160 engine.
-Fold-out front cover for easy access to all maintenance points.
-Hour/Tachometer to measure machine hour usage and engine RPM.
-Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
-Heavy-duty shock mounts to withstand the harsh operating environment while reducing vibration to the operator and helping to extend component life.
-Hydraulic controls enable the operator to easily switch direction from forward to reverse while also allowing for spot compaction.
-Rugged base plate manufactured from high strength steel for top performance and featuring an open design for easy cleanup.
-Steel frame protective guard with a fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
-Low profile base plate lowers the center of gravity dramatically improving travel speed.
-Optional- tool-free wheel kit, model WHL158
Centrifugal Force - 5283 lbf 23.5 kN
Exciter Speed - 5400 VPM
Plate Size - 23.2x15.8 in; 590x400 mm
Max Forward Speed Per Min. - 89 ft 27 m
Dimensions & Weights
Overall Length - 40.55 in 1030 mm
Overall Width - 15.75 in 400 mm
Overall Height - 38 in 965 mm
Operating Weight - 268 lb 122 kg
