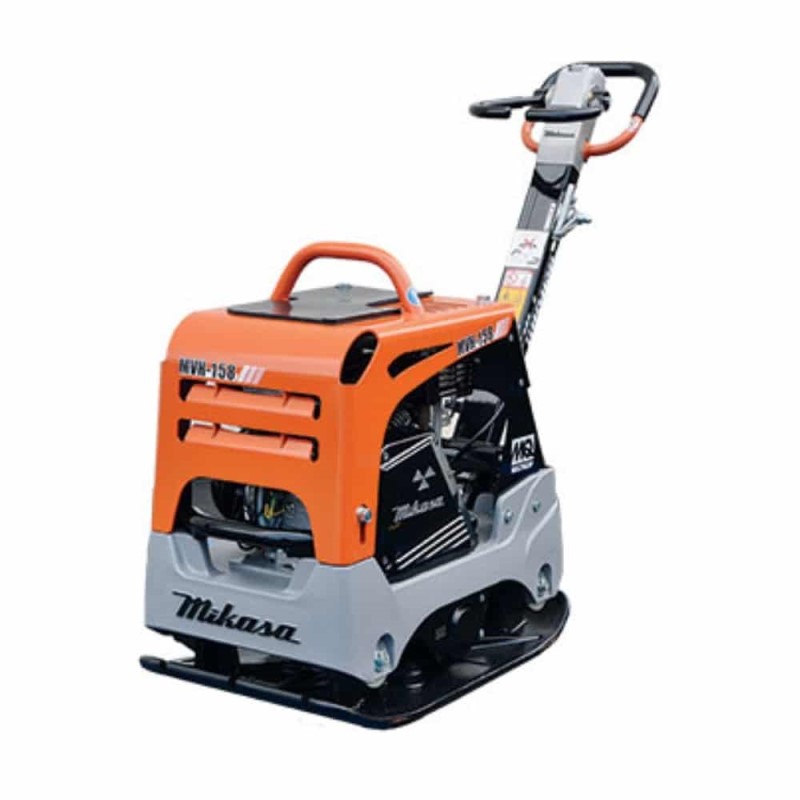

Multiquip MVH158GH, 6,070 lbs cf, Honda GX200, 16.9in. Plate
Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
-Reliable Honda GX200 engine.
-Fold-out front cover for easy access to all maintenance points.
-Hour/Tachometer to measure machine hour usage and engine RPM.
-Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
-Heavy-duty shock mounts to withstand the harsh operating environment while reducing vibration to the operator and helping to extend component life.
-Hydraulic controls enable an operator to easily switch direction from forward to reverse while also allowing for spot compaction.
-Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
-Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
-Low profile base plate lowers the center of gravity dramatically improving travel speed.
-Optional- tool-free wheel kit, model WHL158
Centrifugal Force - 6070 lbf 27 kN
Exciter Speed - 5400 VPM
Plate Size - 16.9 x 27.6 in; 430 x 700 mm
Max Forward Speed Per Min. 88 ft 27 m
Dimensions & Weights
Overall Length - 44.8 in 1130 mm
Overall Width - 16.9 in 430 mm
Overall Height - 36.5 in 920 mm
Operating Weight - 326 lb 148 kg
