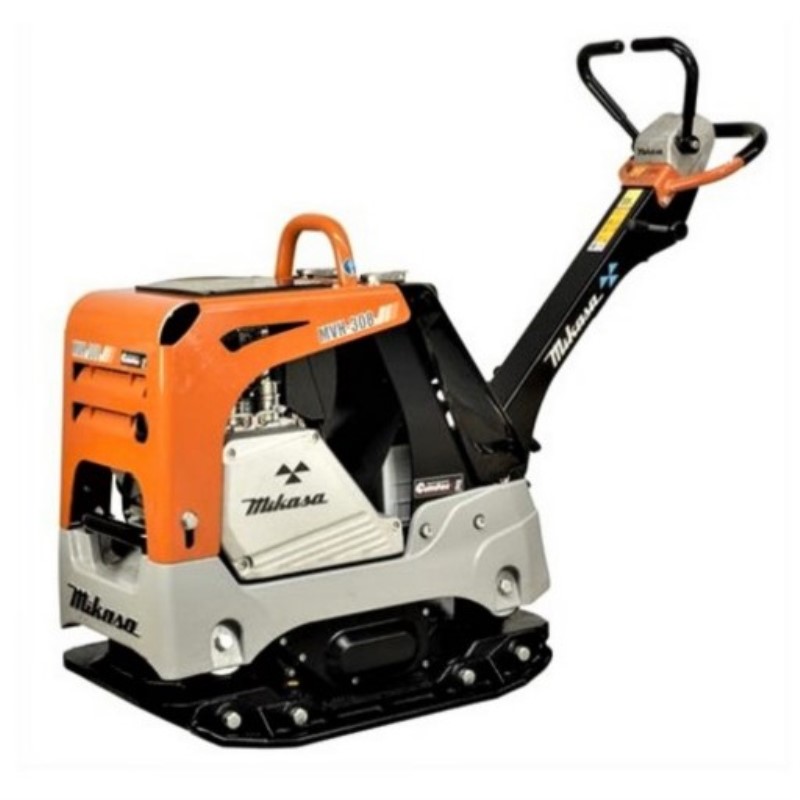

Multiquip MVH308DZ, 10,116 lbs cf, Hatz 1B30 Diesel, 18" wide plate
Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
-Reliable engine with Hatz diesel offering easy electric start-up.
-Fold-out front and rear covers for easy access to all maintenance points.
-Hour/Tachometer to measure machine hour usage and engine RPM.
-Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
-Heavy-duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
-Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
-Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
-Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
-Low profile base plate lowers the center of gravity dramatically improving travel speed.
-Extension plates can be added or removed to operating working width up to 6 inches.
Unit Specifications
Centrifugal Force - 10116 lbf 45 kN
Exciter Speed - 4400 VPM
Plate Size - 18 x 34 in; 445 x 860 mm
Plate Size with Extensions - 24 x 34 in; 600 x 860 mm
Max Forward Speed Per Min. - 79 ft 24 m
Hatz 1B30
Dimensions & Weights
Overall Length - 61 in 1540 mm
Overall Width - 24 in 600 mm
Overall Height - 48 in 1210 mm
Operating Weight - 794 lb 360 kg
