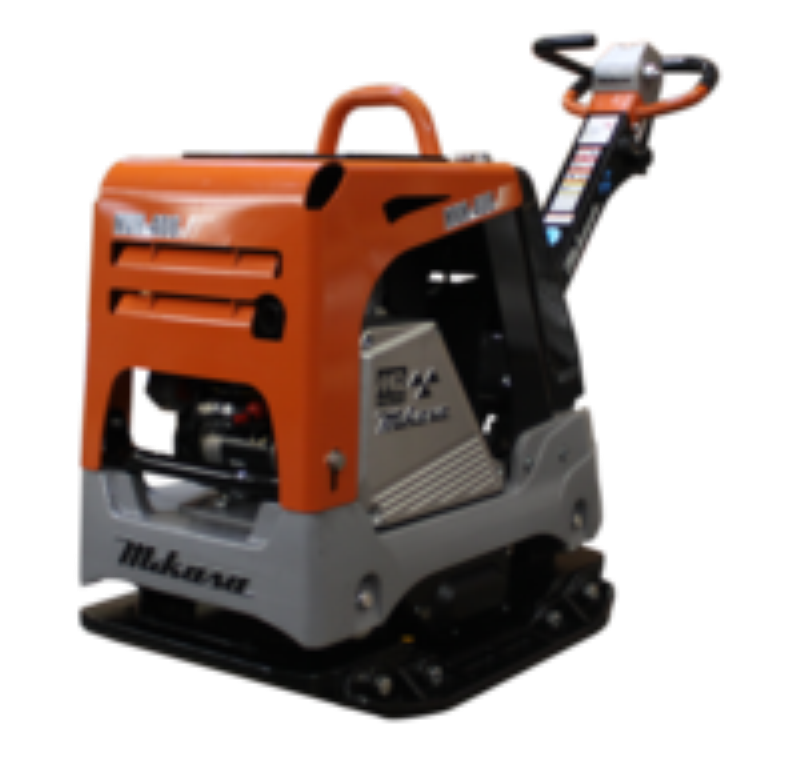

Multiquip MVH408DZ, 12,365 lbs cf, Hatz 1B50 Diesel, 20" Wide Plate
Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
-Reliable engine with Hatz diesel offering easy electric start-up.
-Fold-out front and rear covers for easy access to all maintenance points.
-Hour/Tachometer to measure machine hour usage and engine RPM.
-Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
-Heavy-duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
-Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
-Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
-Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
-Low profile base plate lowers the center of gravity dramatically improving travel speed.
-Extension plates can be added or removed to operating working width up to 6 inches.
Centrifugal Force - 12365 lbf 55 kN
Exciter Speed - 4400 VPM
Plate Size - 20 x 35 in; 500 x 900 mm
Plate Size with Extensions - 26 x 35 in; 650 x 900 mm
Max Forward Speed Per Min. 82 ft 25 m
Dimensions & Weights
Overall Length - 62 in 1570 mm
Overall Width - 26 in 650 mm
Overall Height - 48 in 1210 mm
Operating Weight - 933 lb 423 kg
