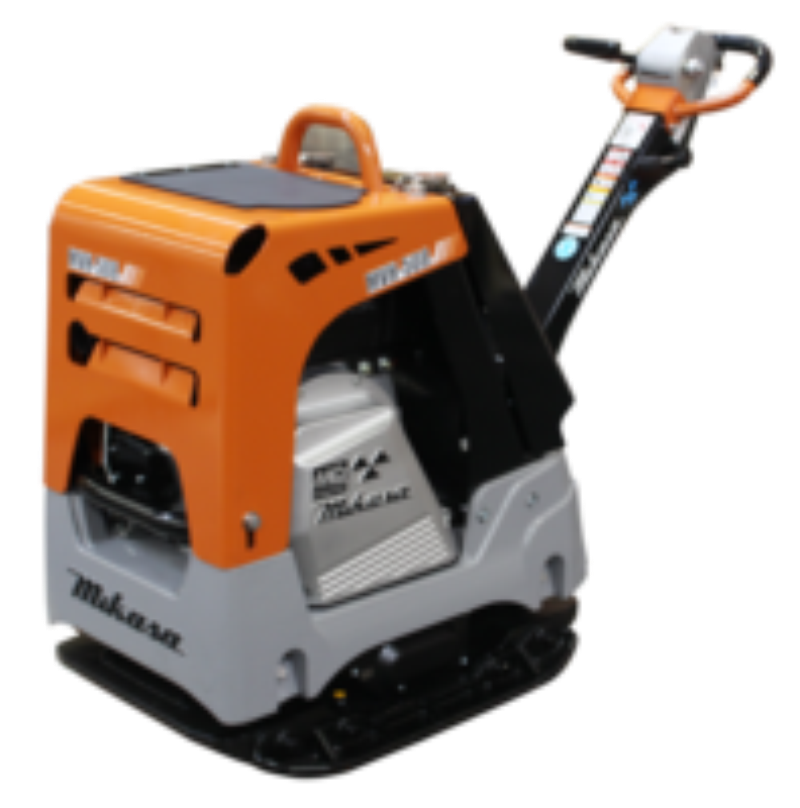

Multiquip MVH508DZ, 14,613 lbs cf, Hatz 1D81S Diesel, 20" Wide Plate
Multiquip's Mikasa brand reversible plate compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
-Reliable engine with Hatz diesel offering easy electric start-up.
-Fold-out front and rear covers for easy access to all maintenance points.
-Hour/Tachometer to measure machine hour usage and engine RPM.
-Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
-Heavy-duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
-Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
-Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
-Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
-Low profile base plate lowers the center of gravity dramatically improving travel speed.
-Extension plates can be added or removed to operating a working width up to 6 inches.
Centrifugal Force - 14613 lbf 65 kN
Exciter Speed - 4400 VPM
Plate Size - 20 x 35 in; 500 x 900 mm
Plate Size with Extensions - 26 x 35 in; 650 x 900 mm
Max Forward Speed Per Min. - 82 ft 25 m
Dimensions & Weights
Operating Weight - 1182 lb 536 kg
